- Measurement modes: Optical Rotation,Specific Rotation,Concentration,International Sugar Scale
- Colorful touch LCD
- Measurement range: ± 45° (Optical); ±120° Z (sugar)
- USB&RS232 Interface

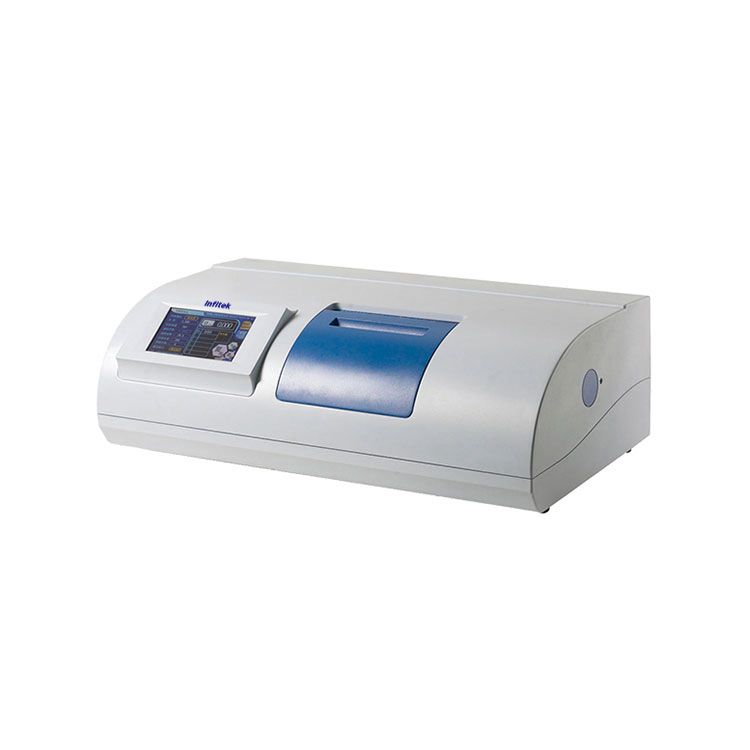

Automatic Polarimeter, POL-2P, POL-1P
Description
- Need not preheat when turning on.
- Automatically retest 6 times and calculate the average and root mean square, can measure dark samples.
- Available to measure dark-colored sample.
- Color touch screen.
| Parameters/Model | POL-2P | POL-1P | |
| Measuring mode | Optical Rotation,Specific Rotation,Concentration,International Sugar Scale | ||
| Light source | LED+interference filter | ||
| Wavelength | 589nm | ||
| Measuring range | ±45°(OR);±120°Z(ISS) | ||
| Accuracy | ±0.01°(-15°≤OR≤+15°)
±0.02°(OR<-15°or OR>+15°) |
||
| Resolution | 0.001°(OR);0.01°Z(ISS) | ||
| Repeatability | 0.002°(OR) | ||
| Min.transmission | 1% | ||
| Temp.control range | 15-30℃ | —– | |
| Temp.accuracy | ±0.5℃ | —– | |
| Display | 7 inch color touch LCD | ||
| Interface | RS232,USB | ||
| Test Tube | 100mm 200mm (regular)
100mm(temp control) |
100mm 200mm(regular) | |
| Power supply | 220V±22V,50Hz±1 Hz,200w | ||
| Package Dimension (W*D*H) (mm) | 840*530*520mm | ||
| N.W./G.W.(kg) | 28kg/43kg | ||
