- Rotor type: HLA Rotor,SERO Rotor
- Rotor Capacity: (0.25~1ml)×12,7ml×12
- Max RCF: 2000×g,1000×g

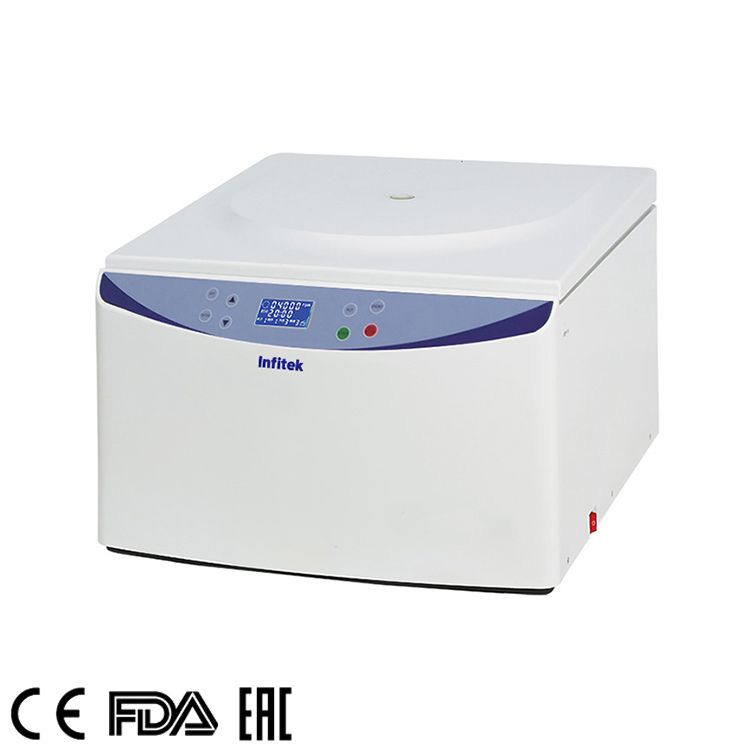

Blood cell washing centrifuge, CFG-4B (BW)
Description
Application:
- It has microprocessor control, DC brush-less motor.
- The SERO rotor is used for erythrocyte washing.
- The HLA rotor is for lymphocyte washing.
Technical performance
- Microcomputer control, DC brush-less motor, stable operation, low noise and high speed accuracy.
- Touch panel, programmable operation, operation data can be set according to demands and stored automatically.
- LED display, user-friendly interface, simple and convenient operations.
- The real-time conversation of speed and RCF is convenient for operation.
- Self-locking device, lid safety device, over-speed safety device, and automatic alarm device, etc.
| Model | CFG-4B (BW) | |
| Rotor type | HLA Rotor | SERO Rotor |
| Rotor Capacity | (0.25~1ml)×12 | 7ml×12 |
| Max RCF | 2000×g | 1000×g |
| Drive | Microcomputer control, brushless DC motor drive | |
| Time range | Programmed timekeeping | |
| Noise | <60dB(A) | |
| Power supply | 110V/60Hz 220V/50Hz | |
| Dimension(L×W×H) | 330mm×420mm×280mm | |
| Packing size(L×W×H) | 430mm×520mm×390mm | |
| Net weight | 14kg | |
Rotor
| Rotor | Key | RFC | Centrifugal Time | Use |
| HLA Rotor For Lymphocyte Washing | 1 | 2000×g | 180s | Lymphocyte separation incubated cell separation |
| 2 | 1000×g | 3s | Hematob last exenterate(thrombin disposal) | |
| 3 | 1000×g | 60s | Lymphocyte Washing | |
| SERO Rotor For Erythrocyte Washing | 1 | 500×g | 60s | Blood grouping, image of hemagglutination reaction |
| 2 | 1000×g | 15s | Cross matching, and the testing of antistaphyoloysin | |
| 3 | 1000×g | 60s | Hematocyte washing, the extraction of serum and plasma |
