- Stirring positions: 1
- Max. stirring quantity[H2O]: 20L
- Max. magnetic bar[length]: 80mm
- Speed range: 0-1500rpm

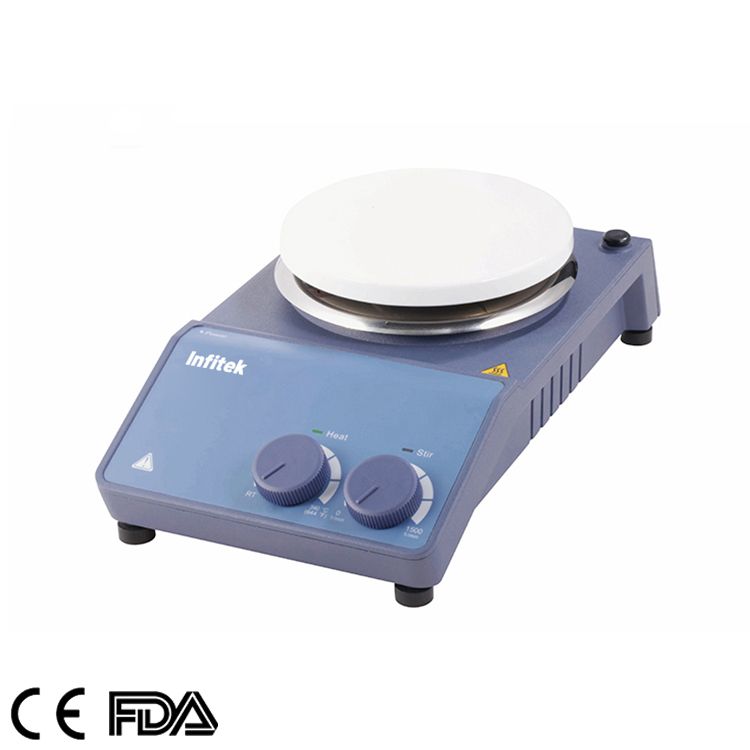

Hotplate Magnetic Stirrer, HPS-340
Description
Feature：
1.Maintenance free brushless DC motor
2.Max. temperature to 340°C
3.Stirring speed up to 1500 rpm
4.Stainless steel work plate with ceramic coating provides good chemical-resistant performance
5.Safety circuits provide overheating protection
6.A wide variety of accessories are available
| Specifications | HPS-340 |
| Work plate dimension | φ135mm(5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 0-1500rpm |
| resolution±1rpm | |
| Speed display | Scale |
| Temperature display | Scale |
| Heating temperature range | Room temp.-340°C |
| Temperature control accuracy | – |
| Over temperature protection | 420°C |
| Temperature display accuracy | ±0.5°C |
| External temperature sensor | – |
| Hot warning | – |
| Timer function | – |
| Data connector | – |
| Protection class | IP42 |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 530W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 490*280*280mm |
| G.W.(kg) | 3.7 |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
