- Max. stirring quantity: 0.4Lx10
- Max. magnetic bar[length]: 40mm
- Speed range: 0-1100rpm
- Heating temperature range: Room temp.-120°C
- Overheating protection: 140°C

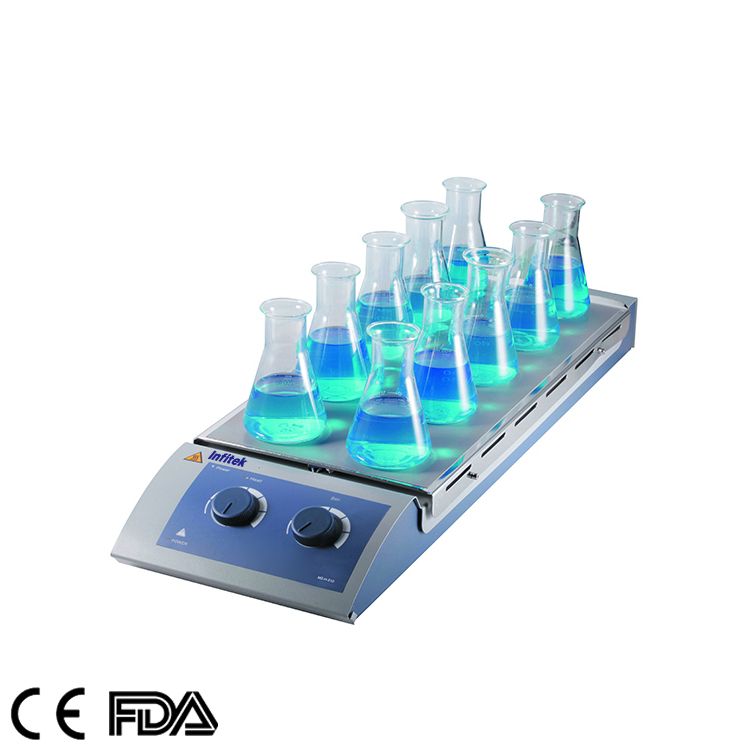

Hotplate Magnetic Stirrer, Multi-Position, HPS-M120-S10
Description
Features
•Maintenance-free brushless DC motor.
•Max speed 1100rpm.
•Max. temperature 120°C.
•Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance.
| Specifications | HPS-M120-S10 |
| Work plate dimension [W x D] | 180x450mm |
| Work plate material | Stainless steel with silicone |
| Motor type | Brushless DC motor |
| Stirring positions | 10 |
| Max. stirring quantity | 0.4Lx10 |
| Max. magnetic bar[length] | 40mm |
| Speed range | 0-1100rpm |
| Speed display | scale |
| Temperature display | scale |
| Heating temperature range | Room temp.-120°C |
| Overheating protection | 140°C |
| Protection class | IP42 |
| Motor rating input | 12W |
| Motor rating output | 4W |
| Power | 490W |
| Heating output | 470W |
| Voltage | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 182×622×65mm |
| Weight | 3.2kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
