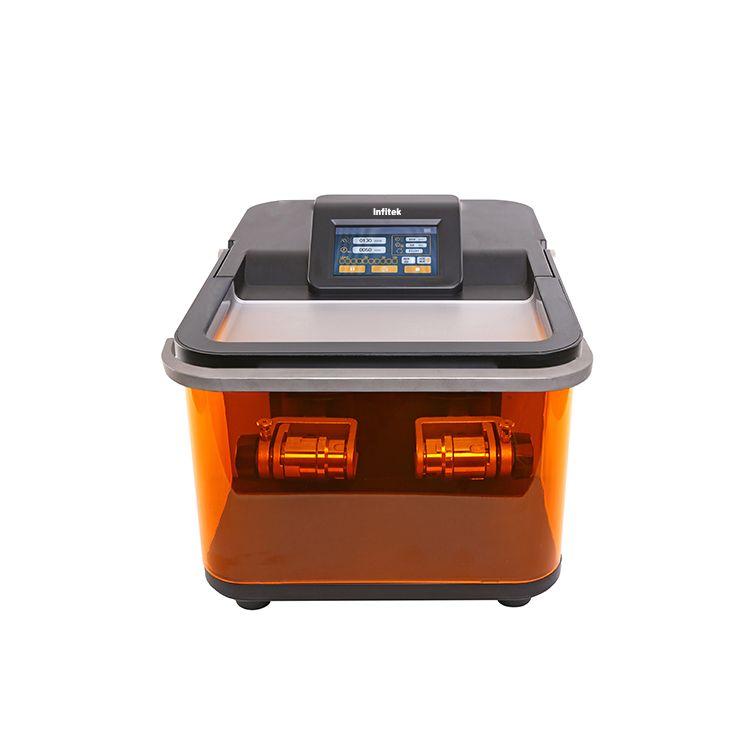

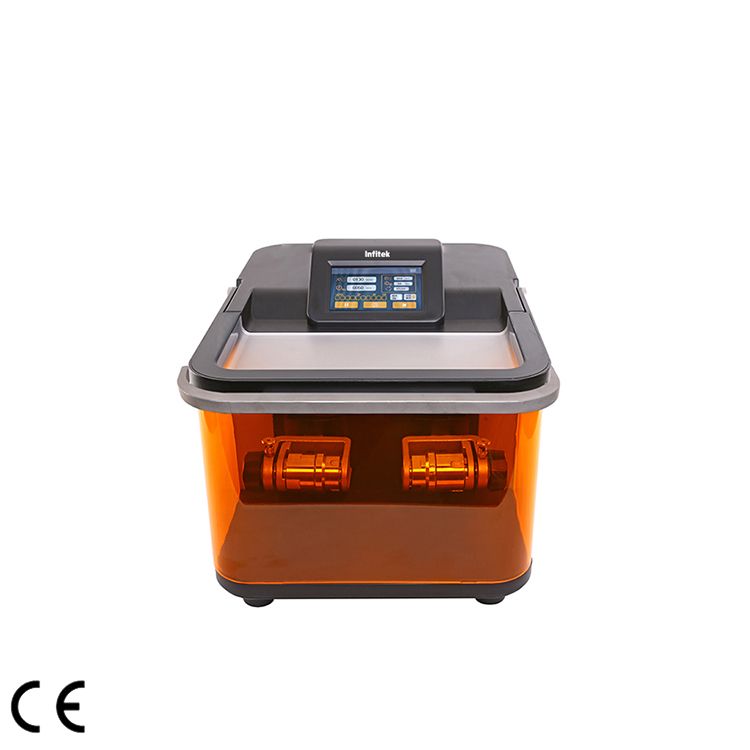

Micro Ball Mill, GM-G300

Description

The Micro Ball Mill is designed for modern laboratory applications. It can process small and large batches of samples, such as plants, animal tissues and small samples in dry, wet or cryogenic conditions. It can mix and homogenize powders and suspensions in only a few seconds. It is also perfectly suitable for the disruption of biological cells as well as for DNA/RNA and protein extraction.

Sample type: hard, soft, elastic and fibrous samples

Typical sample: plant root, stem, leaf, grain, seed; human and animal tissue, viscera, bone, hair; mineral, soil, glass, ceramic, rubber, plastic, solid waste, electronic waste,paper, textile, chemical, medicine, food.

Application Examples

Before grinding                 After grinding



Sample: Soil

Grinding Ball: 10mm stainless steel grinding ball

Grinding Jar: Reaction vials, 50 ml, PP

Sample Characteristic: Hard

Remarks: Sample volume should not exceed 35ml

Time: 4 minutes

Before grinding                       After grinding



Sample: Plastic

Grinding Ball: 20mm stainless steel grinding ball

Grinding Jar: 50ml stainless steel grinding jar

Sample Characteristic: Dry

Remarks: Sample must be pre-processed to <3mm, quantity should not exceed 20g

Time: 1 minute, repeat 4-5 times

Features

• Suitable for dry, wet and freezing grinding.
• Extremely short processing time.
• Designed for high sample throughput, up to 192 sample preparations.
• Wide range of grinding jars and accessories for extensive applications.
• Pre-setting of all working parameters digitally, the result is repeatable.
• The transparent lid allows the user to check the grinding situation at any time.
• The upper lid has a safety lock device. When the upper lid is opened during the grinding process, the motor will stop running to ensure the user personal safety.
• Program setting can control the operation time, interim grinding and program storage etc.

Advantages

Easy operation and high safety performance

• Due to the integration of motor brakes, the machine can only be started when the lid is closed.
• The « Easy Clamp » system allows the simple and safe clamping of grinding jars up to 50ml.
• The grinding chamber, easy clamp system as well as the swinging arm is made from high precision stainless steel to meet strict food and pharmaceutical requirements.
• The application of new brushless motor makes maintenance very convenient.

Grinding, mixing and cell disruption

• It can process 2pcs. and large batch samples simultaneously in 30 seconds, with sample volume ranging from 0.2ml to 50ml.
• It meets the requirements of high throughput grinding extremely.

Specification

Model	GM-G300
Feed Size	<10mm
Final Fineness	<5μm
Speed	180-1800rpm
Sample Volume	0.2-20ml
Time Setting	00:01~99:59(min/s)
Rated Power	150W
Electricity	220V, 50/60Hz
External Dimension (W*D*H)	370*505*335mm
Package Dimension (W*D*H)	700*500*560mm
Net Weight	34kg
