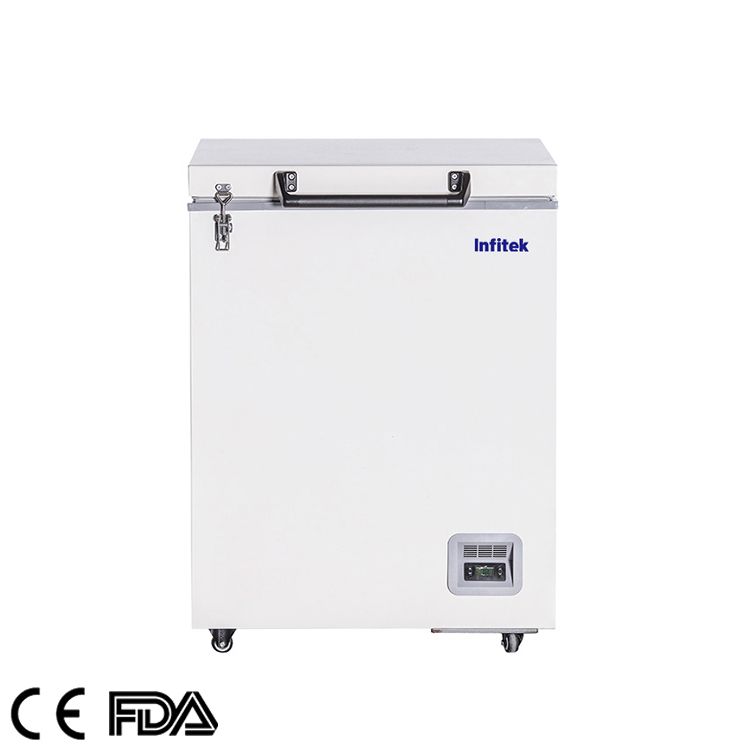

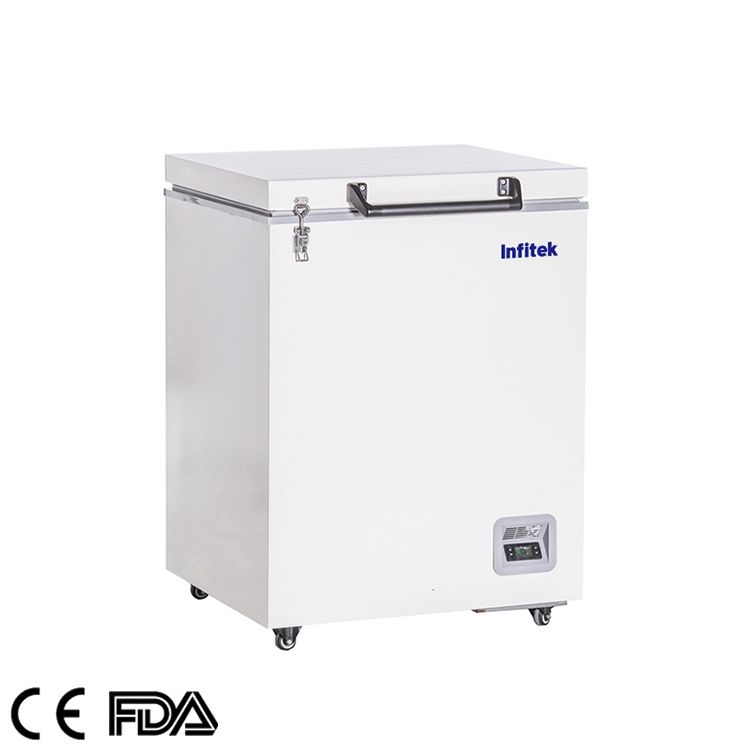

Low Temperature Biomedical Freezer, -25℃, LF25-H Series

The -25°C Low Temperature Biomedical freezer meets medical, scientific and industrial refrigeration needs, with large capacity, space-saving design, precise control, stability, fast cooling and other features, it is an ideal choice for hospital and laboratory sample storage.

  1. Capacity (L): 105, 485, 305
  2. Temperature range (℃): -25~-10℃
  3. Advanced Cooling System: Reasonable refrigeration layout,more stable refrigerant,High cooling efficiency and fast cooling speed.
  4. Stable and high precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
  5. Convenient after-sales service: 2 years warranty

Share the product

Description

Key Features of Biomedical Freezer

  • Chemically stable, CFC-free, commercially available and environmentally safe refrigerant.
  • Microprocessor control, adjustable temperature range: -25℃to –10℃
  • LED digital display and increment range at 0.1℃~1℃.
  • Permanently lubricated cooling fan for safety and longevity.
  • Wide voltage band for 187V~242V.
  • Door lock design to avoid abnormal door open.
  • Big screen for easy observation.
  • Standard testing hole.

Safety

  • Multiple malfunction alarms to detect high and low temperature, sensor error, power failure, temperature controller malfunction.
  • Two types of alarm indications: audible buzzing and visual flashing light.

Reliability

  • High density CFC-free urethane foam insulation.
  • Standard with 25mm test hole.
  • Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage.
Model LF25-H110 LF25-H490 LF25-H310
Capacity (L) 105 485 305
Dimension (W*D*H) Internal (mm) 480*380*665 1455*525*665 1000*520*665
External (mm) 621*588*883 1655*755*915 1140*742*883
 Temperature Range (℃) at RT.10~32℃ -10~-25 -10~-25 -10~-25
Sensor NTC NTC NTC
Controller Microprocessor Microprocessor Microprocessor
Cooling system Refrigerant R290 (CFC Free) R290 (CFC Free) R134a  (CFC Free)
Defrost Manual Manual Manual
Compressor (Qty) DONPER/1 CUBIGELN/1 China brand/1
Display Digital display Digital display Digital display
Audible&Visible Alarm High/Low temperature Standard Standard Standard
High ambient temperature / / /
Sensor error Standard Standard Standard
Abnormal voltage / / /
Power failure backup system(alarm) 12h 12h 12h
Door ajar / / /
Material Internal Electro-galvanized steel with antimicrobial powder coating Stainless steel, grade 304 Electro-galvanized steel with antimicrobial powder coating
External Electro-galvanized steel with antimicrobial powder coating Electro-galvanized steel with antimicrobial powder coating Electro-galvanized steel with antimicrobial powder coating
Accessories USB port / / /
Casters Standard Standard Standard
Data logger Optional Optional Optional
Remote alarm port / / /
Test hole (Qty) / Diameter (mm) 1/25 1/25 1/25
Shelves / Drawers (Qty) / / /
Sound Emission (dB) 46 55 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz AC110/220V±10%, 50/60Hz AC110/220V±10%, 50/60Hz
Consumption (W) 174 295 128
N.W./G.W. (Kg) 31/34 124/138 66/70
Package Dimension (W*D*H)(mm) 700*640*1010 1710*885*1020 1320*890*1125
