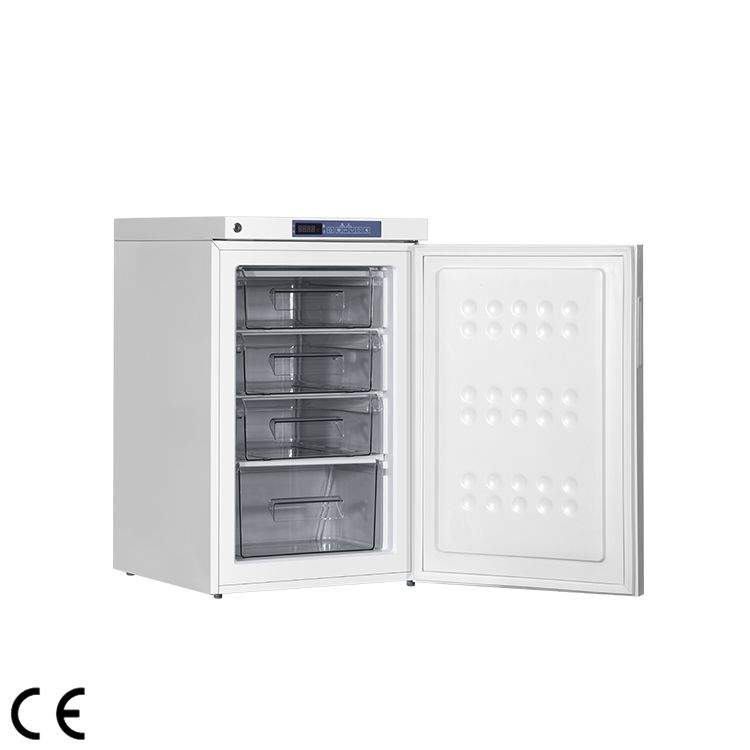

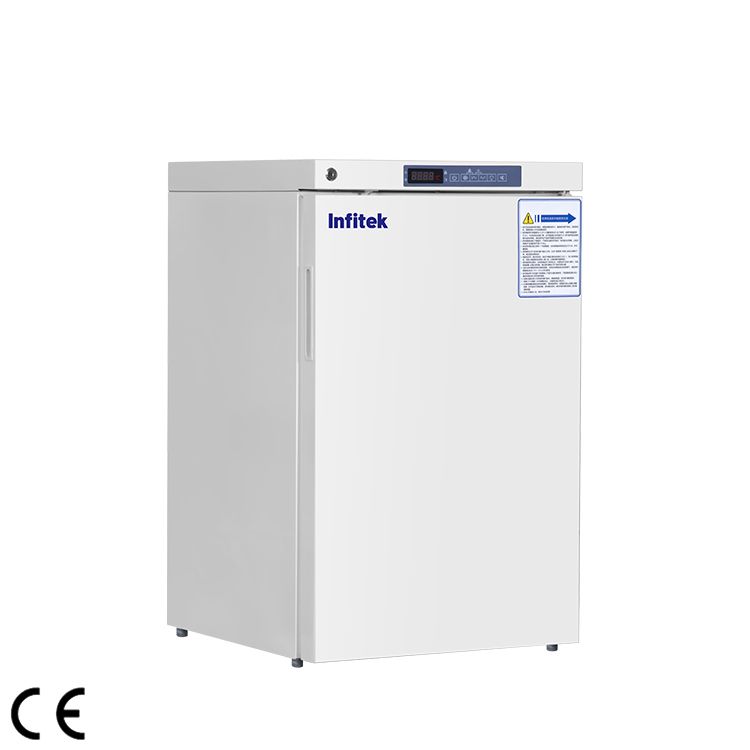

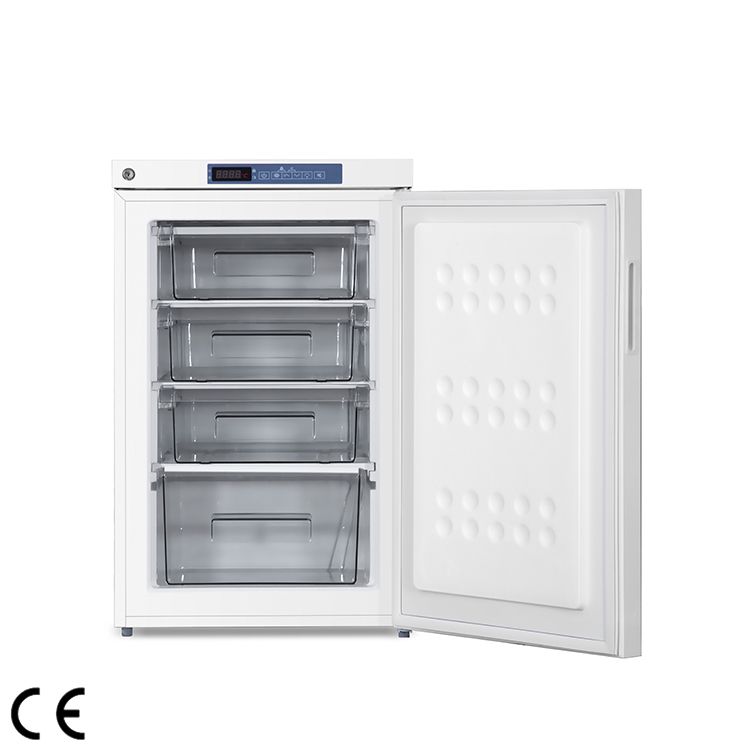

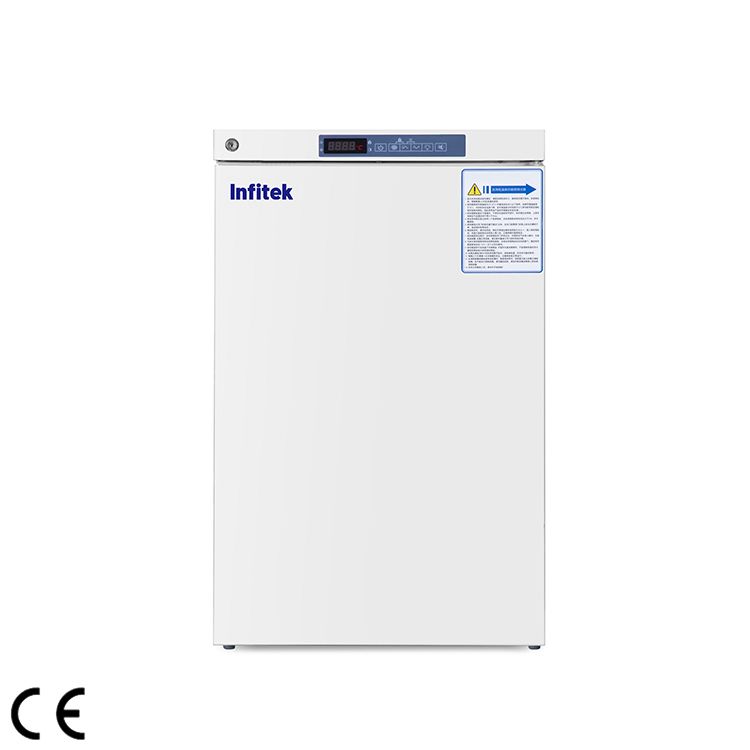

-25℃ Vertical Freezer, LF25-100

  1. Capacity(L/cu.ft): 100/3.53
  2. Temperature range(℃): -25~-10℃
  3. Advanced Cooling System: Reasonable refrigeration layout, more stable refrigerant, High cooling efficiency and fast cooling speed
  4. Stable and high precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
  5. Convenient after-sales service: 2 years warranty

Share the product

Description

Key Features
1.Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
2.Lockable caster design for customer to move as needed.
3.Wide voltage tolerance design with applicable voltage range of 187~242V/AC.

Safety
1.Multiple malfunction alarms including high and low temperature, sensor error, power off, temperature controller malfunction, door ajar.
2.Two types of alarm indications: audible buzzing and visible flashing light.
3.Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from damage.
4.Controller password protect function to avoid change running parameter randomly.

Reliability
1.Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
2.High density CFC-free urethane foam insulation for rigidity and stable storage temperature.
3.Microprocessor control, digital display adjustable temperature range: -25℃~-10℃.
4.LED digital display for clear observation.



Model LF25-100
Capacity (L) 100
Dimension (W*D*H) Internal (mm) 410*410*670
External (mm) 540*553*877
Temperature Range (℃) at RT.10~32℃ -10~-25
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant( CFC Free ) R600a
Defrost Manual
Compressor (Qty) KY55C45G/1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Sensor error Standard
Abnormal voltage /
Door ajar Standard
Power failure backup system(alarm) 8h
Material Internal HIPS
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port /
Casters /
Temperature data logger Optional
Remote alarm port /
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves/3 ,Drawers/4
Sound Emission (dB) 50
Electricity Voltage/Frequency AC 110/220V ± 10% , 50/60Hz
Consumption (W) 73
N.W./G.W. (kg) 32kg/43kg
Package Dimension (W*D*H)(mm) 640*650*1100
