FNC-BX1400-4/9/16 FNC-BX1400-2
1. 1400°C maximum operating temperature;

2. High purity fibrous alumina insulation for maximum energy saving;

3. Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;

4. Safety interlock with automatic power off the furnace when door is opened(optional)

5. PID automatic control via current limiting phase angle fired the resistor, e.g. SC R (Silicon Controlled Rectifier);

6. Power control with 30 segments programmable.

Accessories (specify these at time of order)

Optional

Different chamber size for your choose;

LCD touch screen control for choose

Program software to connect computer for choose.

Content may be subject to modifications or corrections

FNC-BX1400-2/4/9/16

Max. Temp (℃)	1400℃
Continuous working temp.	≤1300℃
Chamber size (mm)WDH	100×100×100, 150×200×150, 200×300×200, 300×400×300 Or customize as your requirement
Heating element	SiC heating rod
Thermal couple	S type
Chamber material	Alumina Ceramic fiber
Heating rate	0~30℃/mm, suggest to be 10℃/min;
Thermal control accuracy	±1℃
Temperature uniformity	±5℃
Power supply	AC 100V-415V, 50Hz/60Hz
Max. PowerWDH	2kW for 100×100×100(mm), 4kW for 150×200×150(mm), 9kW for 200×300×200(mm), 16kW for 300×400×300(mm)

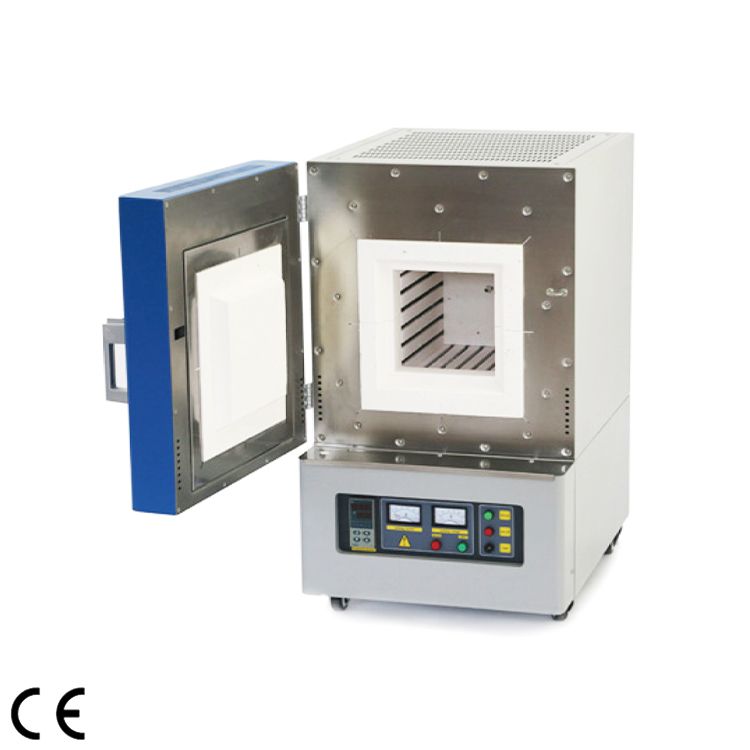

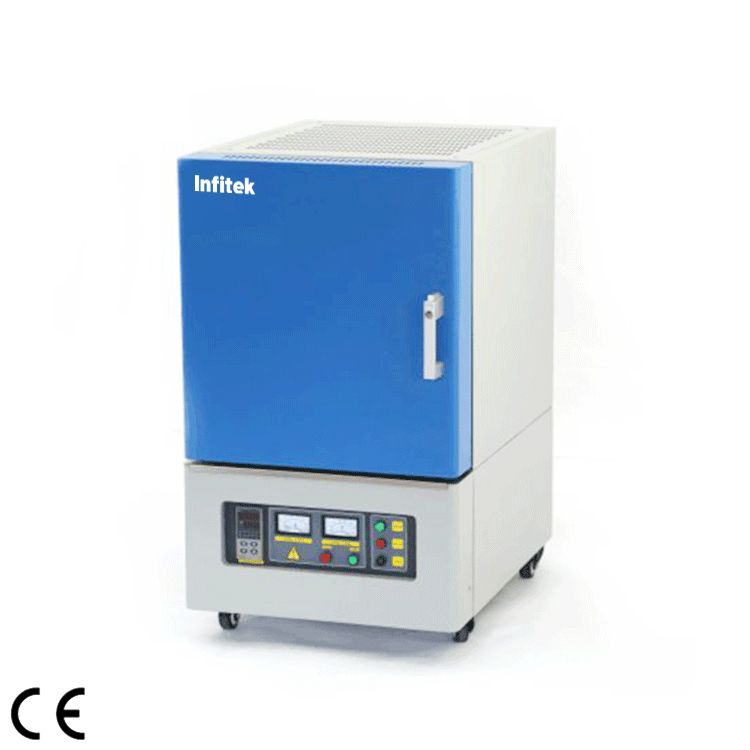

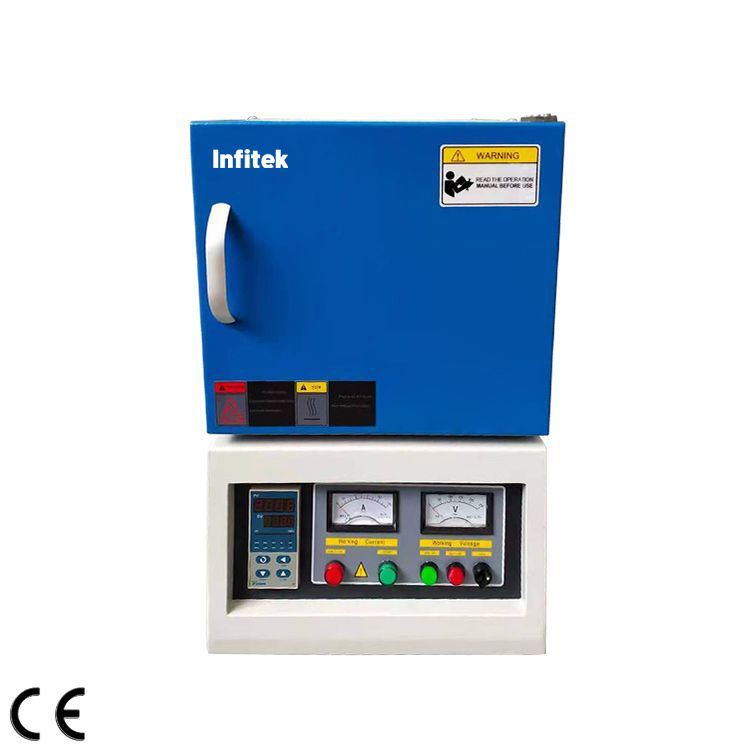

Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series
