- High Throughput: Up to 576 samples/batch
- Oscillation Speed: 500-1800rpm
- Sample Rack: 20*50mL, 38*15mL, 10*100mL, 54*2mL
- Sample Capacity: 576 positions

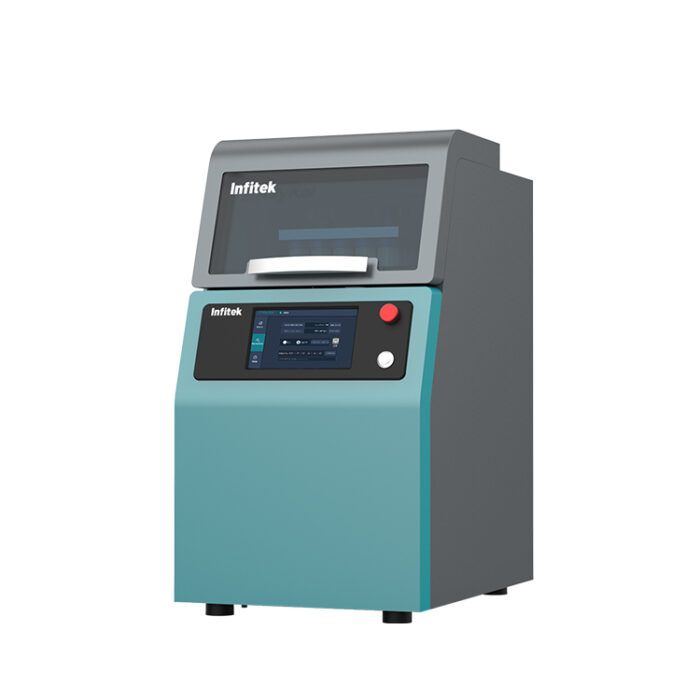

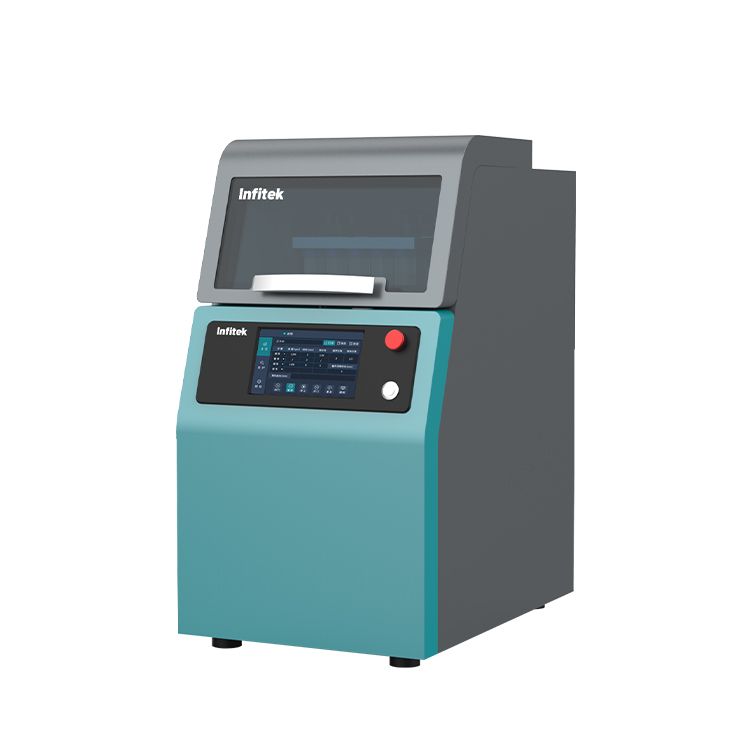

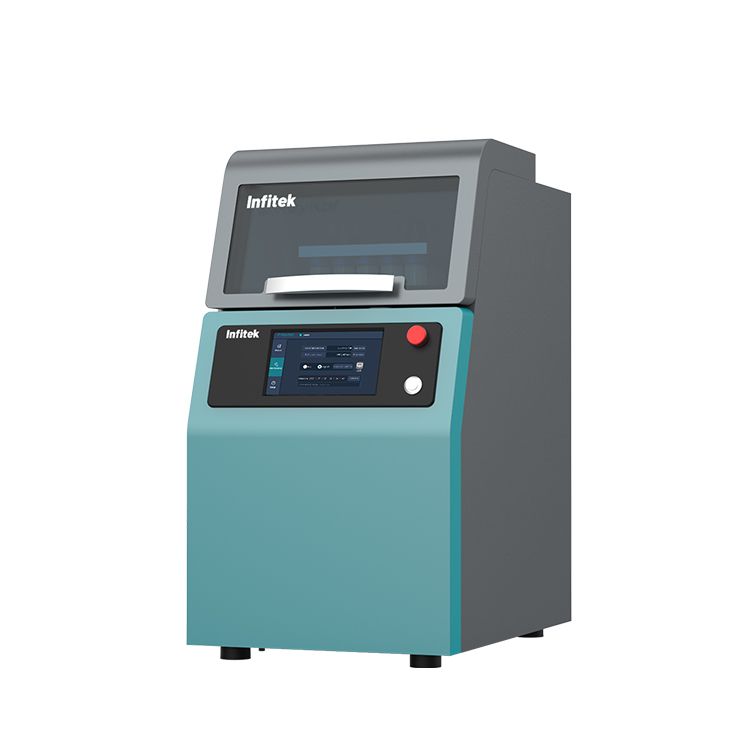

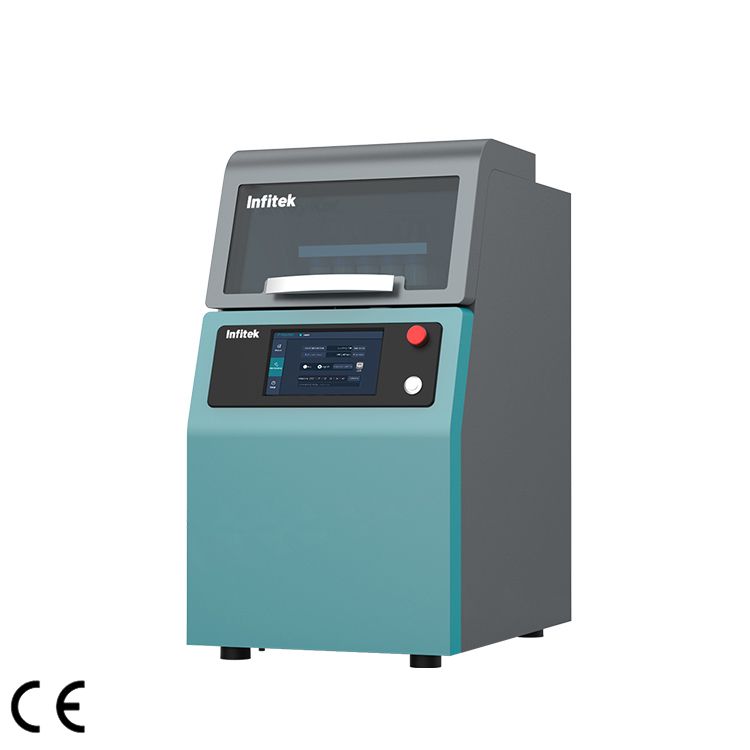

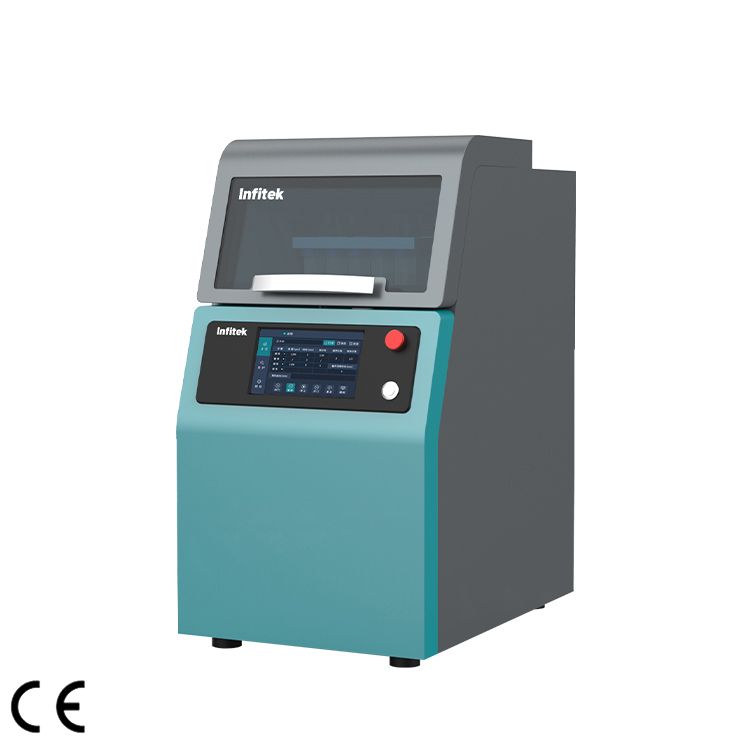

Vertical Oscillator, SHK-R2V
Description
Description
The vertical oscillator can be used for rapid oscillation and mixing of samples, cell disruption, tissue homogenization. It can handle a wide range of samples, including plant roots, stems, leaves, flowers, fruits, seeds and animal tissues, and can also meet the requirements for sample extraction in QuEChERS pre-treatment methods.
Application
 |
 |
 |
| Food Safety | Rapid Sample Processing | Life Science |
Features
Simple operation
- Color touch screen displaying oscillation speed and time.
- With start and stop buttons, it can be stopped and started at any time during the oscillation process.
- Reservation start, recurring setup.
Convenience & Humanized design
- Transparent viewing window with built-in LED light allows user to observe the sampling situation at any time.
- The upper cover of the instrument is equipped with boosting module, which makes it easier to open and close the instrument cover.
- With sound insulation cotton inside the equipment for sealing and soundproofing.
Safety
- With electronic lock, the machine automatically stopsrunning when the door is opened to ensure personnel safety.
- Equipped with an emergency mechanical door opening device to dealwith sudden power failure and electronic locks that cannot be opened.
- Emergency button on the front of the device for emergency use.
Flexible application
- The product has a compact structure and occupies a small area (＜2m2), and can be flexibly placed on various laboratory tables for operation.
- Available in various sizes of sample racks to meet different applications, and sample rack can be customized.
- Multiple different speedand times of operation, different methods can be set up according to application needs.
Specification
| Model | SHK-R2V |
| High Throughput | Up to 576 samples can be processed in one batch |
| Oscillation Speed | 500-1800rpm, Max. Amplitude: 32mm |
| Oscillation Cycle | Max. 10mins for each oscillation step, max. 4 steps;
Able to set max. 20 cycles of repeating the oscillation method, max. rest time between cycles is 60mins. |
| Appointment Operation | Max.12 hours |
| Gradient Program Control | 4 steps of gradient setting |
| Sample Rack | 20*50mL, 38*15mL, 10*100mL, 54*2mL;
Other specifications can be customized; |
| Max. Sample Capacity | 576 positions |
| Control Software | 7-inch color touch screen to display real-time operating status |
| Method Storage | Max.50 methods |
| Overweight Detection | Perform weight detection before operation to prevent the equipment from running overweight |
| Non-Operating Storage Environment | Temperature: 0℃~40℃ (32℉~104℉)
Humidity: 20%~85% RH |
| Operating Environment | Temperature: 10℃~40℃ (50℉~104℉)
Humidity: 20%~80% RH |
| Electricity | AC 200~240V, 50/60Hz, 1500W |
| External Dimension | 370*520*690mm |
| Package Dimension | 800*600*1200mm (Including 1 pallet) |
| N.W./G.W. | 70kg/96kg (Including 1 pallet) |
