Description

The Chemical Safety Cabinet provides secure storage solutions for hazardous materials and chemicals, enhancing hazard identification, storage organization, and chemical compatibility management.

Features

Cabinet Body: Double-walled fire-resistant steel plate structure with a 38 mm insulation layer;
Door Panel: ≥1.0mm high-quality double-walled cold-rolled steel plate;
Lock: Doublelocks with three-point linkage;
Hinges: Piano hinges;
Ventilation: Double air vents equipped with fire-arresting devices;
Coating: Epoxy resin electrostatic spraying;
Grounding: Electrostatic grounding conduction port;
A 50 mm high leak-proof sump prevents accidental spills from overflowing;

Specifications

Model	External Dimensions (HWD) (mm)	Capacity (gal/L)	Lock	Shelf Load Capacity	Shelf Dimensions (mm)	No. of Shelves	G.W. (kg)
SSC-W4Y SSC-W4R SSC-W4B	560430430	4 / 15	Double lock	120 kg	34830025	1	25
SSC-W12Y SSC-W12R SSC-W12B	890590460	12 / 45	Double lock	120 kg	50836025	1	40
SSC-W22Y SSC-W22R SSC-W22B	1650590460	22 / 83	Double lock	120 kg	53037025	3	65

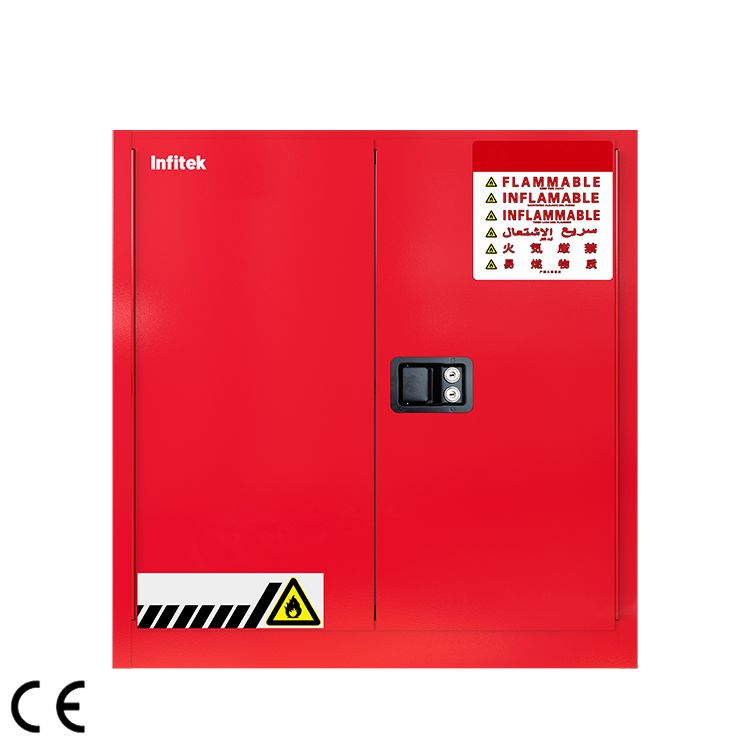

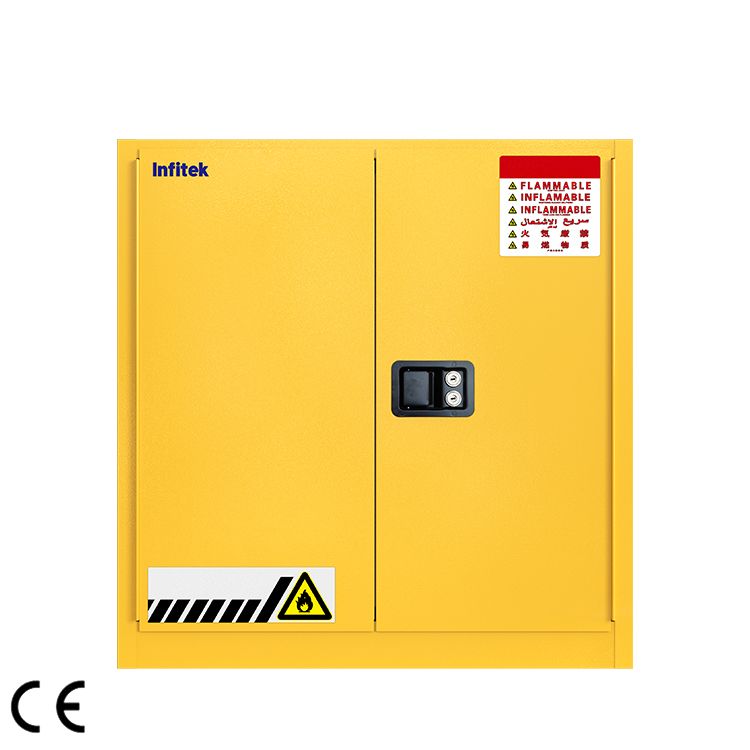

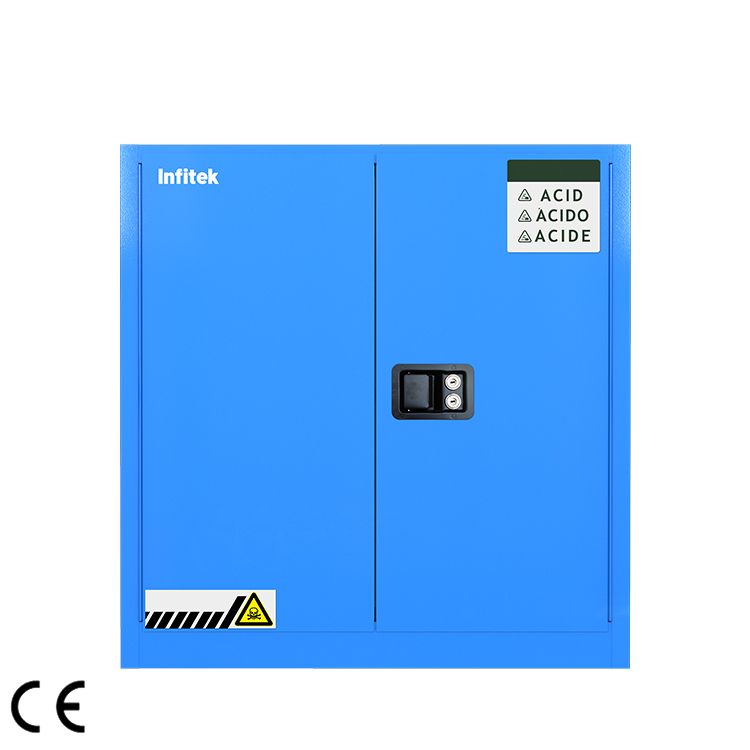

SSC-W30Y SSC-W30R SSC-W30B	11201090460	30 / 114	Double lock	120 kg	100836025	1	75
SSC-W45Y SSC-W45R SSC-W45B	16501090460	45 / 167	Double lock	120 kg	100836025	2	95
SSC-W60Y SSC-W60R SSC-W60B	1650860860	60 / 227	Double lock	120 kg	77876025	2	110

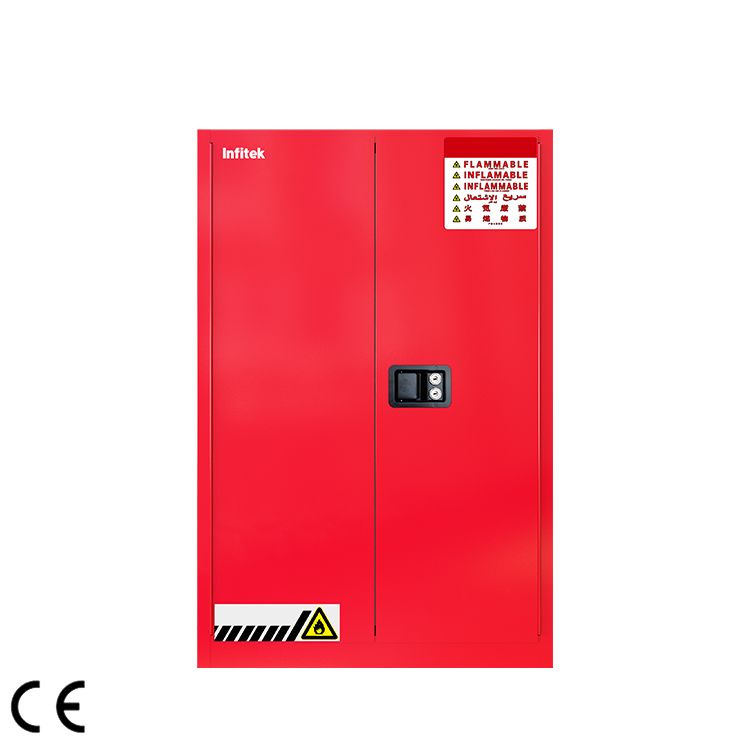

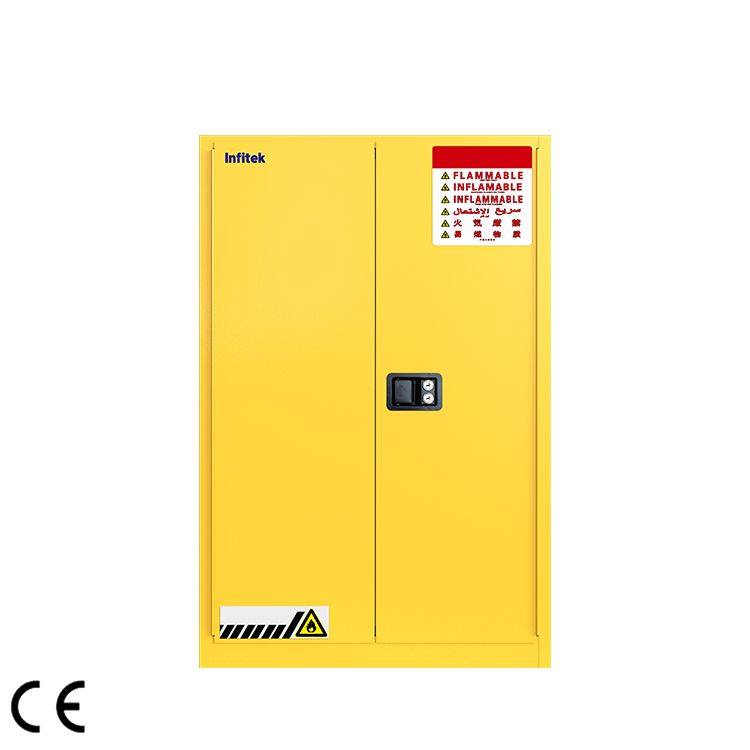

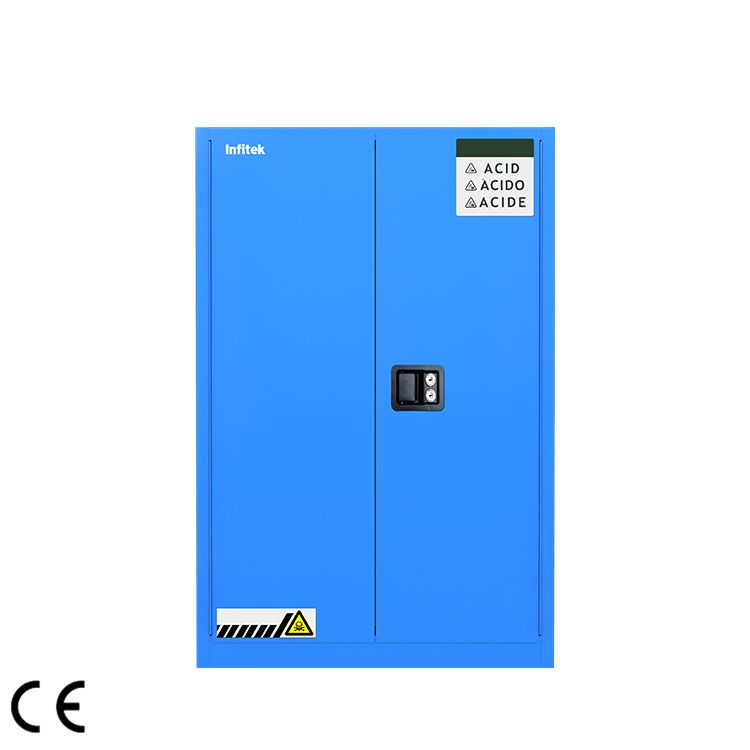

SSC-W90Y SSC-W90R SSC-W90B	16501090860	90 / 340	Double lock	120 kg	100876025	2	130
