Description

Sample & Reagent Positions

40 sample positions
Reagent refrigeration function
40 reagent positions

Reaction Cuvettes

60 reusable plastic cuvettes
Automatic cuvette blank testing
Rear spectrophotometry optical system
Detachable design for easy replacement

Sample/Reagent Probe & Mixer

Automatic liquid level detection
Collision protection function
Interior and exterior probe washing
Independent mixer

7-Step Auto-Washing System

Automated 7-step washing
Advanced wash station ensures accurate results
Low water consumption: 1–2 L/h

Intelligent Software

Automatic cuvette washing at startup and shutdown
Automatic reagent volume detection at startup
Reagent tray temperature detection at startup

Cuvette Blank & Calibration

Automatic cuvette blank measurement
Automatic washing of selected cuvettes

Real-Time Operating Status Display

Real-time monitoring of sample tray, reagent tray, and cuvettes
Real-time tracking of residual reagent volumes
Real-time monitoring of liquid waste volume

Automatic Dilution and Retest

Automatic dilution and retest when absorbance is out of range
Automatic dilution and retest when linearity limit is exceeded
Flexible setting for auto-dilution ratio and dilution water position

Specifications

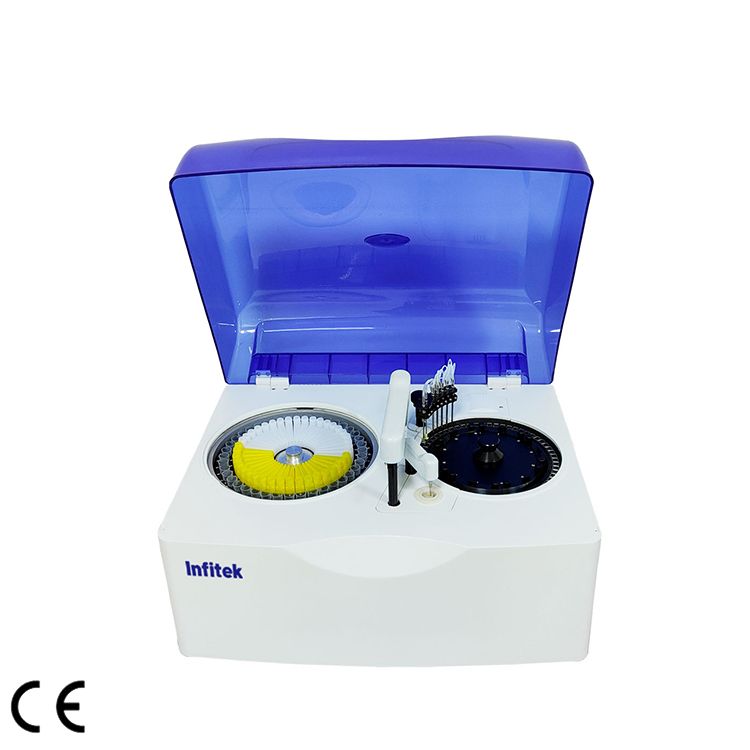

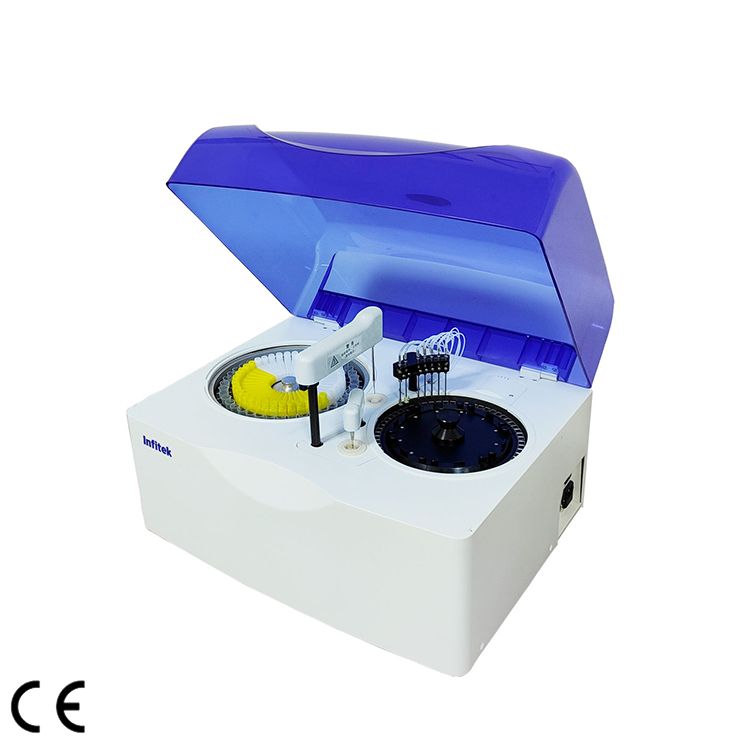

Model	BA-A-200TC
System Functions
Analysis Methods	End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard, etc.; open to various reagents
Optimal Replacement for Semi-Auto Chemistry Analyzers
Minimal labor required;
Independent mixer;
Reduced reagent consumption: 300 µL/test
Throughput: 200 tests/hour
User-friendly: Smart and easy-to-operate software
High accuracy: Minimized operational and random errors
Proven reputation among clinics
Sample/Reagent Handling
Sample Volume	1.6–50 µL, 0.1 µL step
Sample Dilution	Automatic/Manual pre-dilution, with dilution ratios up to 1:100
Reagent Positions	40
Reagent Volume	10–500 µL, 0.5 µL step
Reaction System
Reaction Cuvettes	60 reusable plastic cuvettes
Optical Length of Cuvette	6 mm
Reaction Volume	180–400 µL
Max. Reaction Time	10 minutes
Reaction Temperature	37 ± 0.1°C
Optical System
Light Source	Halogen-tungsten lamp
Wavelength	340–690 nm, 9 wavelengths, accuracy ±1.5 nm
Absorbance Range	0–5.0 Abs
Resolution	0.0001 Abs
Optical Type	Rear spectrophotometry
Calibration
Calibration	Linear/non-linear multi-point calibration
Retest	Automatically retests the sample when results exceed the linearity range or sample volume is insufficient
Operating System
Windows 10 or Windows 7
Input and Output
Input	RS-232 interface / Computer
Output	Multi-format printout
Working Conditions
Power Supply	100–240 V AC, 50/60 Hz, 300 VA
Ambient Temperature	10–35°C
Humidity	≤ 90%, non-condensing
Dimensions and Weight
Analyzer	548413360 mm, 27.3 kg
Package	910680675 mm, 39 kg
