- Capacity: 150L, 500L, 1000L
- Temperature Range: 15～50℃
- With Visible Light+UVA
- Individually adjustable illuminance for each shelf
- Triple safety protection, including critical leakage current protection

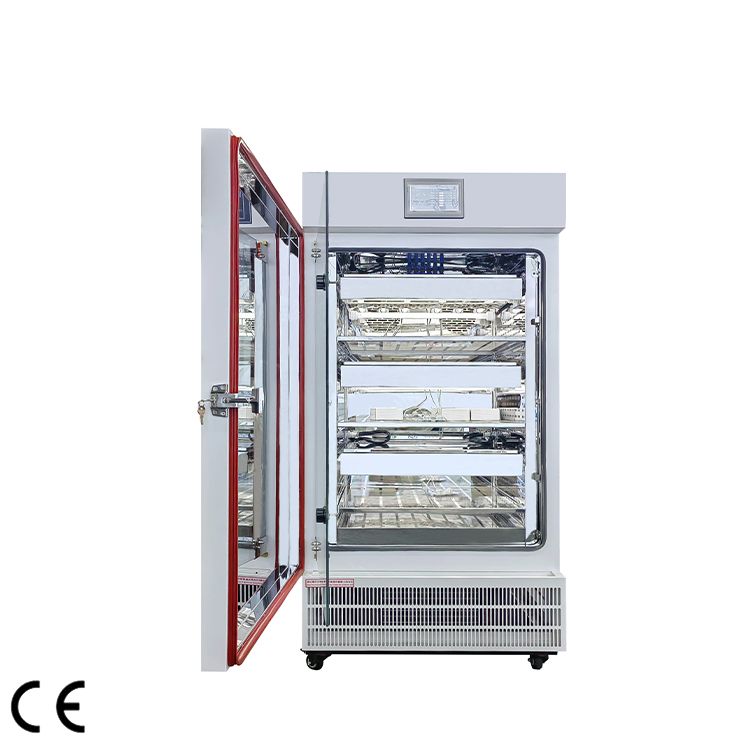

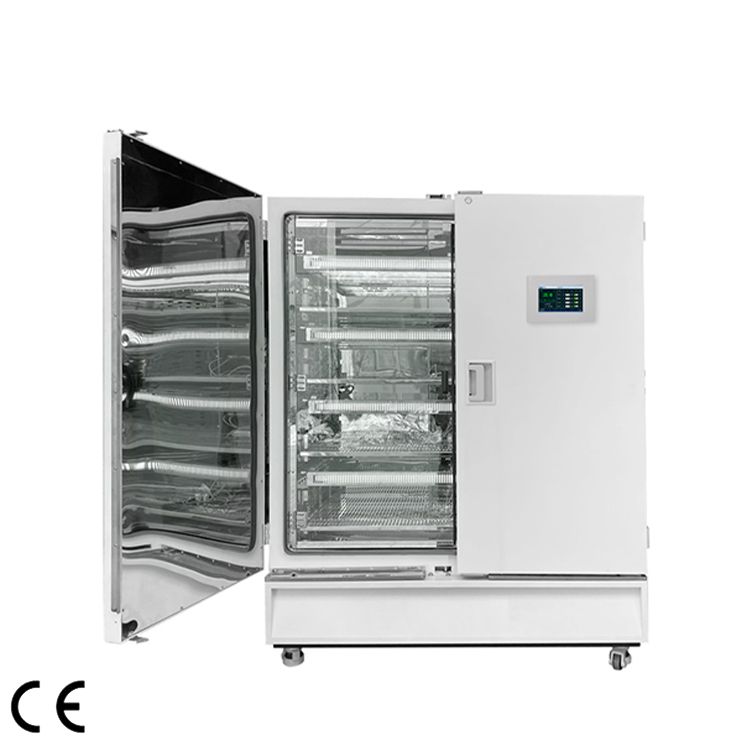

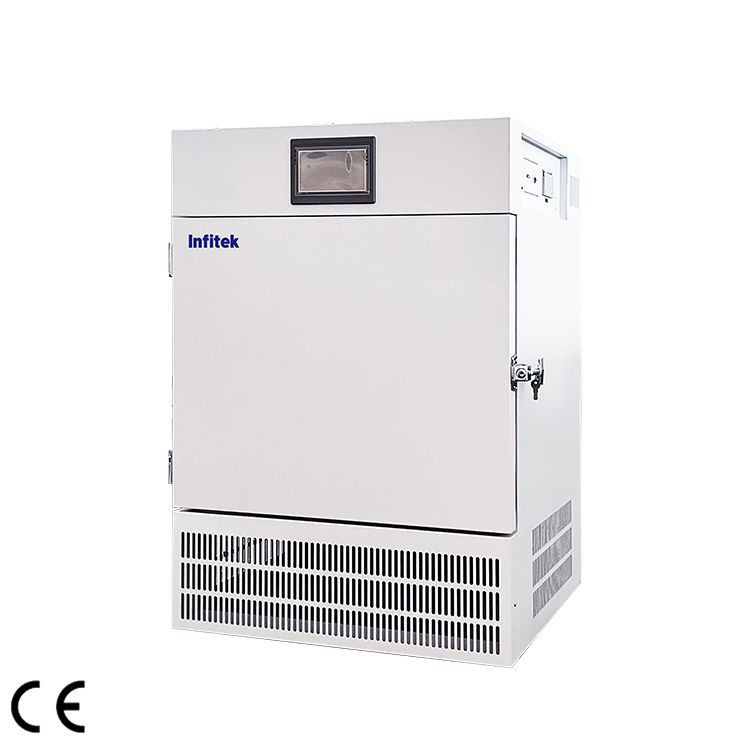

Medicine Stability Testing Chamber, ICB-MS-LL Series
Description
Features
- Independent Zone Control:Individually adjustable illuminance for each shelf.
- Comprehensive SafetyProtection: Triple safety protection, including critical leakage current protection.
Specifications
| Model | ICB-MS150-LL | ICB-MS500-LL | ICB-MS1000-LL |
| Capacity (L) | 150 | 500 | 1000 |
| Temperature Range (℃) | 15～50 | ||
| Temperature Fluctuation (℃) | ±1 | ||
| Temperature Uniformity (℃) | ±2 (same level) | ||
| Visible Light | Illuminance Range: 100~8,000 Lux | ||
| Illuminance Uniformity: 4,500 ± 500 Lux | |||
| Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | |||
| UVA | Irradiance Range: 0.84~5 W/m² | ||
| Total UVA: ≥ 200 W·hr/m² | |||
| UVA Spectral Range: 320 ~ 400nm | |||
| Electricity | 220V, 50Hz/60Hz | ||
| Power (kW) | 1.5 | 2.1 | 2.5 |
| Ambient Temperature (℃) | 5 ~35 | ||
| Network | Connection via network port | ||
| Internal Dimensions
(W*D*H) (mm) |
650*490*500 | 680*680*1080 | 1360*490*1360 |
| External Dimensions
(W*D*H) (mm) |
830*790*1250 | 860*1050*1850 | 1620*910*1990 |
| Remarks | 1 layer of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA |
* All specifications were measured at an ambient temperature of 20~25°C.
Hardware Configuration
| Compressor | Imported fully enclosed compressor |
| High efficiency, low noise | |
| Evaporator | Coating process with doubled corrosion resistance |
| Controller | 7-inch color programmable touch screen |
| Three-level authority: Configurable for more levels | |
| Audit trail: Storage of operation records | |
| Frequency conversion: Display the frequency output | |
| Prompt Reminder: Periodic maintenance reminders | |
| Alarm System | On-site audible and visual alarm |
| Remote information alarm (optional) | |
| Structural Material | Interior: 304 stainless steel |
| Polyurethane foam insulation | |
| Double Door | Inner door: Tempered glass |
| Inner wall of outer door: SUS304 stainless steel | |
| Safety Protection | Three layers of protection |
| Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
| 5 years | |
| Data Printing | Dot matrix micro-printer |
| Long-term storage | |
| Data Network Version | Server version |
| Complies with FDA 21 CFR Part 11 |
