- Large field WF10X/FN 22 eyepiece, with adjustable diopter
- Inward-facing Quintuple Nosepiece
- With ECO automatic light-off and voice broadcast function
- With aperture diaphragm, field diaphragm, and filter holder

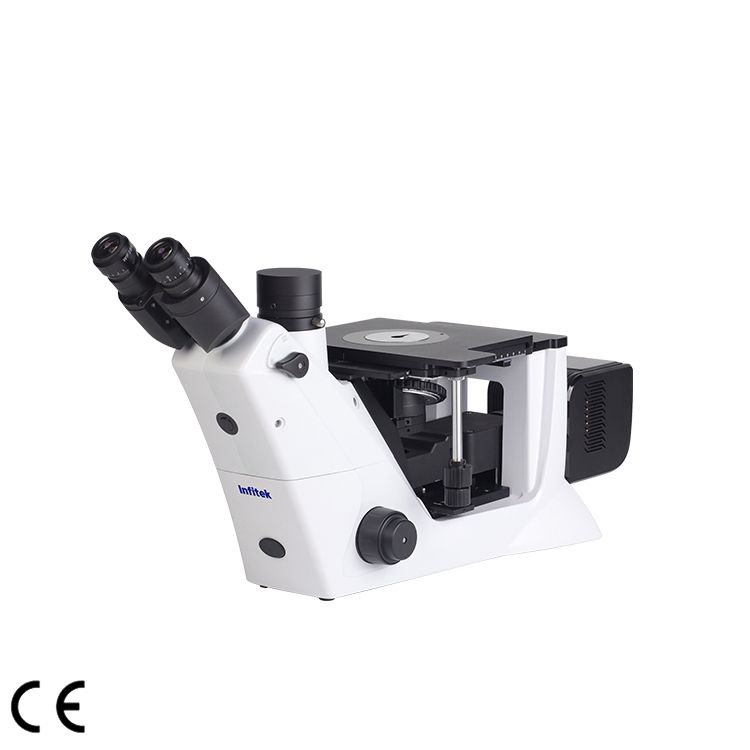

Metallurgical Microscope, MSC-M60X
Description
- Infinity-corrected optical system integrated with high-definition LED reflected illumination.
- Full-spectrum white light source with an ultra-long lifespan and constant color temperature.
- Supports brightfield and polarizing observation, suitable for analyzing large metallic specimens.
Sample Images
Specification
| Model | MSC-M60X |
| Main Frame | Infinity-corrected optical system, with ECO automatic light-off and voice broadcast function |
| Observation Tube | Fixed Trinocular head with high eye point, Interpupillary 50~75mm, Light split: 100/0 and 0/100 |
| Viewing Head | Siedentopf head, inclined at 45° |
| Eyepiece | Large field WF10X / FN 22, with adjustable diopter |
| Objectives | Semi-apochromatic brightfield metallurgical objective
Plan Fluor EPI 5X/0.15, working distance 20 mm |
| Semi-apochromatic brightfield metallurgical objective
Plan Fluor EPI 10X/0.3, working distance 11 mm |
|
| Semi-apochromatic brightfield metallurgical objective
L Plan 20X/0.45, working distance 3 mm |
|
| Semi-apochromatic brightfield metallurgical objective
L Plan 50X/0.8, working distance 1 mm |
|
| Nosepiece | Inward-facing Quintuple Nosepiece; Ball-bearing positioning; Anti-fungus treatment. |
| Stage | X-Y mechanical metallographic stage; With water droplet plate; |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, low-position coaxial focusing knob, fine division 2μm |
| Epi-illumination System | 3W full-spectrum white LED, continuously adjustable brightness
With polarization kit for polarized light observation With aperture diaphragm, field diaphragm, and filter holder |
