- Evaporating Flask Volume: 250~3000mL
- Rotation Speed: 0 ~310rpm
- Evaporation Capacity: Max. 27mL/min (H2O)
- Water/Oil dual-purpose bath with moderate volume and fast heating

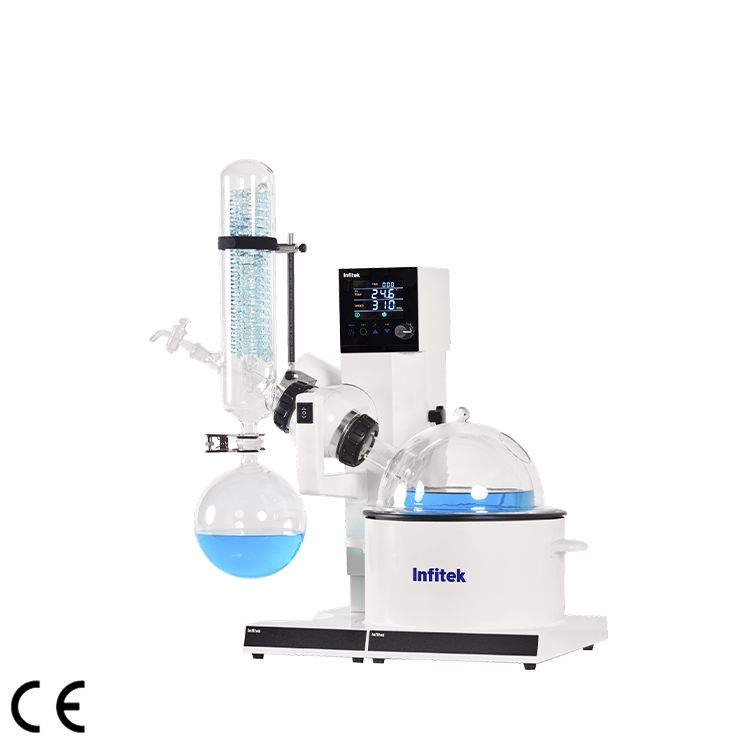

Rotary Evaporator, REV-3000AC
Description
- LCD color display with intuitive menu interface and knob control;
- Optional vacuum system for precise vacuum control;
- Heating Bath: Teflon coating for easy cleaning, excellent corrosion and high-temperature resistance;
- 70W DC motor for smooth start-up and high torque;
- Automatic unattended safe operation with auto-standby mode after experiment completion;
- Condenser designed with drip point and anti-backflow device;
- Quick-release flask ejection knob for effortless and convenient flask replacement;
- Programmable interval rotation (clockwise/anti-clockwise) ideal for drying processes;
- Touch & handle dual-button electric lifting for safer operation;
- Heating bath features safety handles and an insulated outer shell to prevent burns;
- Sealing unit: Imported PTFE molded via special process;
- Water/Oil dual-purpose bathwith moderate volume and fast heating;
Specification
| Model | REV-3000AC |
| Rotation Speed | 0 ~310 rpm (LCD color display) |
| Evaporation Capacity | Max. 27mL/min (H2O) |
| Vacuum Control (Optional) | Built-in vacuum controller (adjustable vacuum degree as required);
Setting range: -0.1~0MPa (0 ~1013mbar); Accuracy: ±1mbar |
| Temperature Range | Water & Oil dual-purpose bath:
Water bath: Room temperature ~ 99 ℃ (±0.5 ℃) Oil bath: Room temperature ~ 210 ℃ (±2 ℃) |
| Heating Bath Design | Integrated Teflon coating for easy cleaning, corrosion & high-temp resistance.
Size: φ26 × 15 cm (approx. 8 L). Equipped with safety handles and insulated outer shell to prevent burns. |
| Safety Cover (Optional) | Transparent PC protective cover (Water bath only): Heat preservation, energy saving, explosion-proof, and splash-proof. |
| Rotation Mode | Interval rotation (Clockwise/Counter-clockwise) with adjustable pause (0–60s); suitable for drying powder samples. |
| Lifting System | Electric lift with touch & handle dual-mode; Stroke: 150 mm. Features a 60 mm safety distance at the lower limit to prevent flask collision. |
| Temperature Control | Microcomputer PID controller with digital display |
| Temperature Setting | ① Knob encoder ② Rotary input setting ③ Large LCD screen for easy and quick operation |
| Safety Performance | Timer function (0~999 min); Automatic stop and standby mode upon completion. |
| Heating Element | Fully enclosed integrated heater; Power: 1.5 kW |
| Evaporating Flask Volume | 250~3000mL |
| Sealing Unit | Imported PTFE and special synthetic materials processed with special technology, providing improved sealing, corrosion resistance and wear resistance. |
| Condenser | Vertical three-layer ball-joint serpentine condenser with large condensing area. |
| Condensing Area | 0.21m2, with drip point and anti-back flow design for enhanced efficiency. |
| Ambient Temperature | 5 ℃ ~ 40 ℃ |
| Electricity | AC 220V/50Hz |
| External Dimensions | 710*645*790mm |
| Package Dimensions | 700*430*860mm |
| Gross Weight | 35kg |
| Standard Configuration | 3L Flange Round-bottom Flask*1;
29# 1L Eggplant-shaped Flask*1; Flange to 29# Ground Joint Adapter*1; S35 Ball-Ground Joint 2L Collection Flask*1; |
| Supporting Products | Rotary Evaporator REV-3000AC+Diaphragm Vacuum Pump VACP-D20+Low Temperature Circulator RECL20-2X |
